Analysis of maize profilin-4 isoform as an allergen

Allergens are small proteins or glycoproteins wavering a molecular weight range of 15 to 40 kDa [1]. Allergens appear from different sources, for instance, pollen allergens from plants, venom allergens from insects, food allergens from various food items, mite allergens from dust, etc. [2]. They can induce IgA, IgE, IgG, and IgM antibody-mediated immune responses [3]. Besides, they can induce Th2 (Helper T) cell-mediated immune response in the human body [4]. Allergens produce an enzymatic or immunogenic reaction to cause allergenicity [5].
Zea mays (maize), a Poaceae family member, is one of the most cultivated crop plants around the world. Maize has both nutritional and medicinal importance. The maize kernel is the nutritive part of the plant that contains all the different vitamins, fatty acids, minerals, etc. Maize is a great source of phytochemicals that are used to treat chronic diseases, HIV, even cancer, etc. [29]. There is an increasing trend of maize production over the last decade. It has been estimated that about 187.95 million hectors of land were used for maize cultivation [6].
In this study, we predict profilin-4 as a potential allergen. As the cultivation rate of maize increases keeping the pace with the demands, it also provokes the concern of allergenicity of its pollen. Wind-pollinated seed plants produce pollens which encompass crucial sign of Type-I allergy [7]. Profilin is known as panallergen due to its widespread cross-reactivity [11]. The allergenic properties of pollens have no association with biological function but the enzymatic and immunogenic actions of allergens cause the allergic reaction and inflammation [8]. The profilin of birch pollen (called Bet v 2) [10] and latex [9] are documented as allergens, but not the maize-specific profilin isoform, profilin-4. Using the Bioinformatics tools and database [12–16], here we analyzed the allergenicity of profilin-4.

Protein Sequence retrieval
Profilin-4 protein sequence (O22655.1) for Zea mays was retrieved in FASTA format from the NCBI protein database (http://www.ncbi.nlm.nih.gov/protein). This protein sequence was the basis for further use to perform different computational analysis from linear amino acid residues.

Prediction of physicochemical properties
Different physicochemical properties for profilin-4 protein were predicted from its linear amino acid sequence using the ProtParam tool (https://web.expasy.org/protparam/) web server. Protparam predicts the molecular weight, theoretical pI, atomic composition, amino acid composition, instability index, extinction coefficient, grand average of hydropathicity (GRAVY), estimated half-life, and aliphatic index of any given amino acid sequences [17].

Potential antigenic sites prediction
The hydrophobic and hydrophilic regions were determined to predict the antigenicity of profilin-4. The hydrophilic portions are exposed to the surface of the protein and display reactivity to the B cell. Kolaskar-Tongaonkar antigenicity and Parker’s hydrophilicity methods were employed to predict the antigenicity of profilin-4. Antigenic propensity, as well as hydrophilicity, was then analyzed from the plots generated [18, 19].

Potential B cell epitope prediction
Not all the regions exposed to outer surface react with B cell, that’s why to predict the B cell epitopes a machine learning tool was used (http://tools.iedb.org/bcell/), a web server where Bepipred linear epitope prediction method was chosen [20]. Bepipred linear epitope prediction method uses an algorithm comprising both hidden Markov model and antigenic propensity and thus allowed to cross-check the predicted result from Kolaskar-Tongaonkar antigenicity and Parker’s hydrophilicity prediction method [18, 19].

Prediction of the 3D structure of profilin-4 and mapping of B cell epitopes on the predicted structure
For 3-D structure prediction of profilin-4 from its linear amino acid sequence an online web service Phyre2 (http://www.sbg.bio.ic.ac.uk/~phyre2/html/page.cgi?id=index) was used. Phyre2 does several alignments of the target protein sequence with different protein templates from its database to predict a good quality model [21-22]. We found that the structure (PDB ID: O22655) of profilin-4 showed maximum alignment score with its target template. Swiss PDB tool was used for the energy minimization of the structure [23]. To validate the structure predicted structure a Ramachandran plot was generated at ‘PDBsum generate’ (http://www.ebi.ac.uk/thornton-srv/databases/pdbsum/Generate.html) web server which measures the stereochemical properties of the protein structure [24]

Physicochemical properties predict the allergenic property of profilin-4 protein

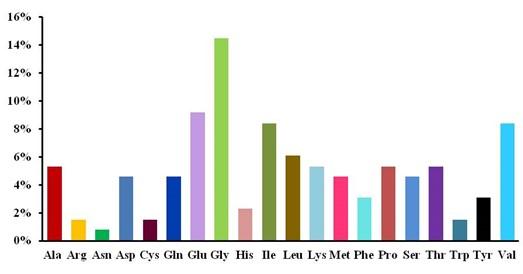

Sometimes physicochemical properties of a protein can determine the allergenic property of a protein [25]. The maize profilin-4 consists of 131 amino acids with a molecular weight of approximately 14 kD (Table 1). The total amino acid distribution of profilin-4 protein (Figure 1) shows that asparagine present in the lowest amount and glutamate, glycine, isoleucine, and valine predominate among the 20 amino acids of profilin-4 protein (Figure 1). Due to abundant acidic amino acids, this suggests the protein’s theoretical pI is to be acidic and theoretical pI is found 4.63, which mean the profilin-4 protein is highly acidic and tends to be allergenic [25]. Hence negatively charged residues (Asp + Glue) is twice the total number of positively charged residues (Arg + Lys) (Table 1) in profilin-4, there is a probability to be processed by dendritic cells via scavenger receptor [26]. From predicted half-life and instability index it indicates that profilin-4 is quite stable [27]. From the predicted negative grand average of hydropathicity value, it can be assumed that most of the amino acid residues of the profilin-4 protein are likely to be present on the surface of the folded profilin-4.

Prediction of Potential antigenic sites on the surface of the profilin-4 protein

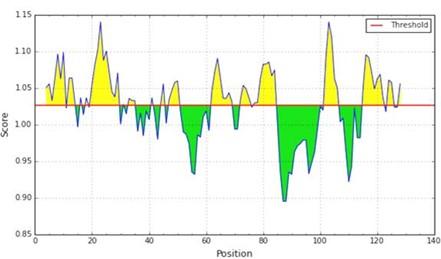

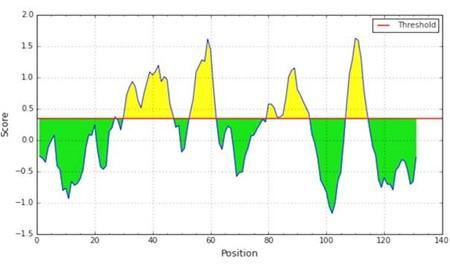

For the prediction of profilin-4 allergenicity, Kolaskar and Tongaonkar prediction method were employed which functions based on physicochemical properties of amino acids in proteins and abundances in experimentally known epitopes [18]. In Figure 2, the x-axis represents the amino acid position and the y-axis represents the antigenic propensity of the protein. The average antigenic propensity of profilin-4 protein is found to be 1.027. So all residues having a value greater than 1.027 are potential antigenic determinant. Seven peptides (Table 2) are found to be a potential antigen because they satisfy the set threshold value (1.00). The peptide regions “EGQHLSAAAIVGHDGSVWAQ” ranging from 16 to 35 amino acid residues and 100 to 108 amino acid residues (“SLIIGVYDE”) are predicted to have the highest antigenic propensity score. Both of them comprise about more than one-fifth (22.13%) of profilin-4 protein. The hydrophilic portion of a protein tends to be exposed on the outer surface of the protein that makes them vulnerable to be engaged with B cell. The average score of hydrophilicity of profilin-4 is found to be 1.421 (Figure 3).  The regions highlighted yellow have a hydrophilicity score of above the average and are likely to be present on the surface of the profilin-4 protein, while the regions highlighted green have a hydrophilicity score of below the average and are unlikely to be exposed on the surface. To predict the hydrophilic regions of profilin-4, we adopted Parker hydrophilicity prediction method [19]. For making a better prediction decision, we have also used a more reliable machine learning tool that follows the Bepipred linear epitope prediction method [28].

Potential B cell epitopes overlap the antigenic sites of profilin-4

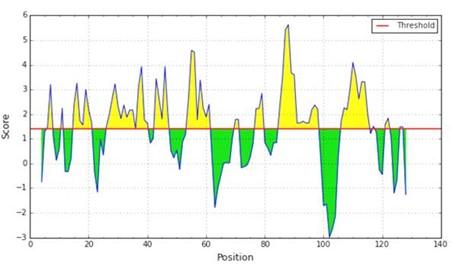

We have applied the BepiPred tool to predict the potential B cell epitopes. The Bepipred linear epitope prediction method uses an algorithm that links the Hidden Markov Model (HMM) and the antigenic propensity to make the prediction more trustworthy [20]. BepiPred predicted four potential B cell epitopes highlighted in yellow for profilin-4 protein sequence (Figure 4) and the maximum predicted score is 1.630. Predicted epitopes are summarized in Table 3.

Mapping of the B cell epitopes in the modeled structure confirms their presence on the surface of profilin-4

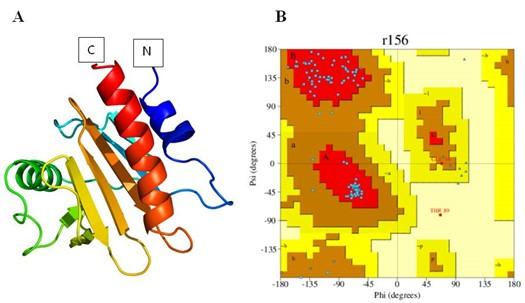

The predicted 3-D structure of profilin-4 was visualized (Figure 5 A) using Swiss PDB viewer tool [7]. Ramachandran plot was generated using an online tool PDBsum generate which validates the predicted structure (Figure 5 B) each blue dots indicates the amino acid distribution in different quadrants of the plot. The amino acid residue distribution reveals that only 1 amino acid residue (tyrosine) which contributes less than 1% is positioned in the disallowed region of the Ramachandran plot that corroborates the high quality of the predicted model. The Predicted B cell epitopes of the profilin-4 protein are mapped on the predicted 3D structure of the profilin-4 protein (Figure 6). The different colored balls on the surface of the protein other than pink represent the 4 predicted B cell epitopes and regions in pink represents the core of the protein.

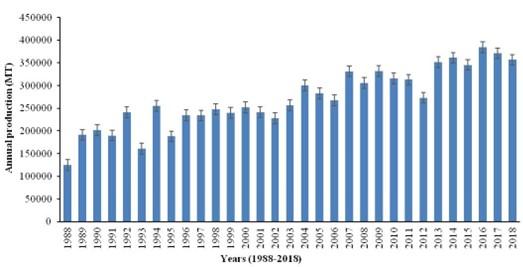

Due to the increasing trend of maize production in the world (Figure 7), it is urgent to analyze the potency of maize profilin-4 isoform as an allergen. In this study, it is evident that profilin-4 is a potential antigen. Our investigation is suggestive of modifying maize crop excluding profilin-4 isoform. We believe that our findings will raise awareness among crop scientists and will help to further validate our findings in in vitro settings.

The authors have declared no conflict of interest with any parties which may arise from this publication.
