Moringa oleifera leaves methanolic extract inhibits angiotensin converting enzyme activity in vitro which ameliorates hypertension

Hypertension is one of the most important risk factors for cardiovascular diseases, which are the leading cause of mortality worldwide. Globally cardiovascular disease accounts for approximately 17 million deaths per year, nearly one third of the total [1]. In Bangladesh, approximately 20% of adult and 40–65% of elderly people suffer from hypertension [2].
The renin- angiotensin system (RAS) is a major clinical target for the treatment of hypertension [3]. RAS-mediated hypertension is initiated when renin stimulates the conversion of angiotensinogen to angiotensin I. Then, angiotensin converting enzyme (ACE) stimulates the conversion of angiotensin I to angiotensin II, which is a potent vasoactive peptide that causes blood vessels to constrict, resulting in increased blood pressure [4].
Moringa oleifera Lam (Moringaceae) is a highly valued plant, distributed in many countries of the tropics and subtropics including Bangladesh. In Bangladesh, the leaves, fruits, flowers and pods of this tree are used as a highly nutritive vegetables. Different parts of this plant contain a profile of important minerals, and are a good source of protein, vitamins, beta-carotene, amino acids and various phenolics. The Moringa plant provides a rich and rare combination of zeatin, quercetin, beta-sitosterol, caffeoylquinic acid and kaempferol. In addition to its compelling water purifying powers and high nutritional value, Moringa oleifera is very important for its medicinal value. Various parts of this plant such as the leaves, roots, seed, bark, fruit, flowers and immature pods act as cardiac and circulatory stimulants, possess antitumor, antipyretic, antiepileptic, anti-inflammatory, antiulcer, antispasmodic, diuretic, antihypertensive, cholesterol lowering, antioxidant, anti-diabetic, hepatoprotective, antibacterial and antifungal activities, and are being employed for the treatment of different ailments in the indigenous system of medicine, particularly in South Asia [5]. Moringa oleifera leaves have traditionally been used in Ayurvedic medicine for their antihypertensive activity [6]. Moreover, Antihypertensive effect of Moringa leaves also evaluated on spontaneously hypertensive rats [7]. But the ACE inhibitory activity of Moringa leaves has not yet been studied.
Many drugs are available for the management of hypertension, even though most of them are rarely affordable. Currently, a tendency towards the use of natural products or alternative medicine, probably due to the fact that it is perceived to be a cheaper means of treatment. The objective of the study was to evaluate the ACE inhibitory activity of MOLME and its type of inhibition in vitro. Inhibition of ACE activity of Moringa oleiofera leaves extracts might be a cost effective and safer antihypertensive agent.

Chemicals
Angiotensin converting enzyme (ACE), Hippuryl-L- histidyl-L-leucine (HHL), O-Phthaldialdehyde (OPA), and Captoprill (CP) were purchased from Sigma, MO, USA. Sodium borate decahydrate (Borax), 2-mercapto ethanol were purchased from Carl Roth, Germany and all other reagents were analytical grade.

Moringa oleifera leaves methanolic extract (MOMLE) preparation
Moringa oleifera leaves were collected and dried in open air in room temperature in the laboratory. The dried leaves were grinded to powder and kept in a refrigerator. 100 g of powder was extracted with 300 mL of methanol by mixing, using a magnetic stirrer at room temperature for 2 h. The extract was filtered through Whatman No.1 filter paper to obtain particle free extract. The residue was re-extracted twice and filtered. The extracts were pooled and concentrated using a rotary vacuum evaporator (Hahnshin Scientific, Korea). The extracts were kept in a refrigerator until analysis.

ACE inhibition assay in vitro
Inhibition of ACE activity by different concentrations of MOLME and CP were measured by spectrophotometric method as described previously [8]. Briefly, 20mM sodium borate buffer containing 0.3 M NaCl (pH 8.3) was used for the preparation of MOLME, CP, ACE, and substrate HHL solutions. The ACE-catalyzed reaction was performed for 30 min at 37°C in test tubes of the following compositions: 100 μL of MOLME or CP, 100 μL of ACE solution (40 mU/mL), and 100μL of HHL (15 mM) solutions (A1); 100 μL of MOLME or CP solution and 200 μL of borate buffer (A2); 100 μL of borate buffer, 100 μL of ACE solution, and 100 μL of HHL solution (A3); and 300 μL of borate buffer (A4). The enzymatic reaction was stopped by adding 3 mL of alkaline solution of OPA solution (pH 12.0). The absorbance of each reaction was measured at 390nm using a HITACHI U-1800 Spectrophotometer (Japan), after incubation for 20 min at 25°C. Inhibition of ACE by MOLME or CP was calculated using the following equation: inhibition (%) = [1−(A1−A2)/(A3−A4)]×100. The IC₅₀ value of ACE activity was calculated by the equation IC₅₀ = (50−b)/m derived from a linear regression graph of ACE activity, where b is the intercept and m is the slope of the equation.

Determination of kinetic parameters of ACE inhibition
Kinetic parameters of Vmax and Km values were determined according to the Michaelis-Menten kinetic model [9]. The reaction rate for the formation of L-histidyl-L-leucine from HHL by ACE (40 mU/mL) was determined by the above-mentioned method with MOLME (226.37μg/ml) or CP (0.0289 μM) and without MOLME or CP to get the saturation curves and then plotted against HHL concentrations (1.85, 3.75, 7.50,15 mM). The Line weaver-Burk plot was derived using the saturation curves to determine the type of inhibition. Kinetic parameters (Km and Vmax) were calculated using MS Excel.

Statistical analysis
The results are expressed as the percentage of ACE inhibition. All data were expressed as the mean ± SD. The statistical analysis of data was performed using SPSS for Windows version 11 (SPSS, Inc., Chicago, IL, USA).

ACE inhibition

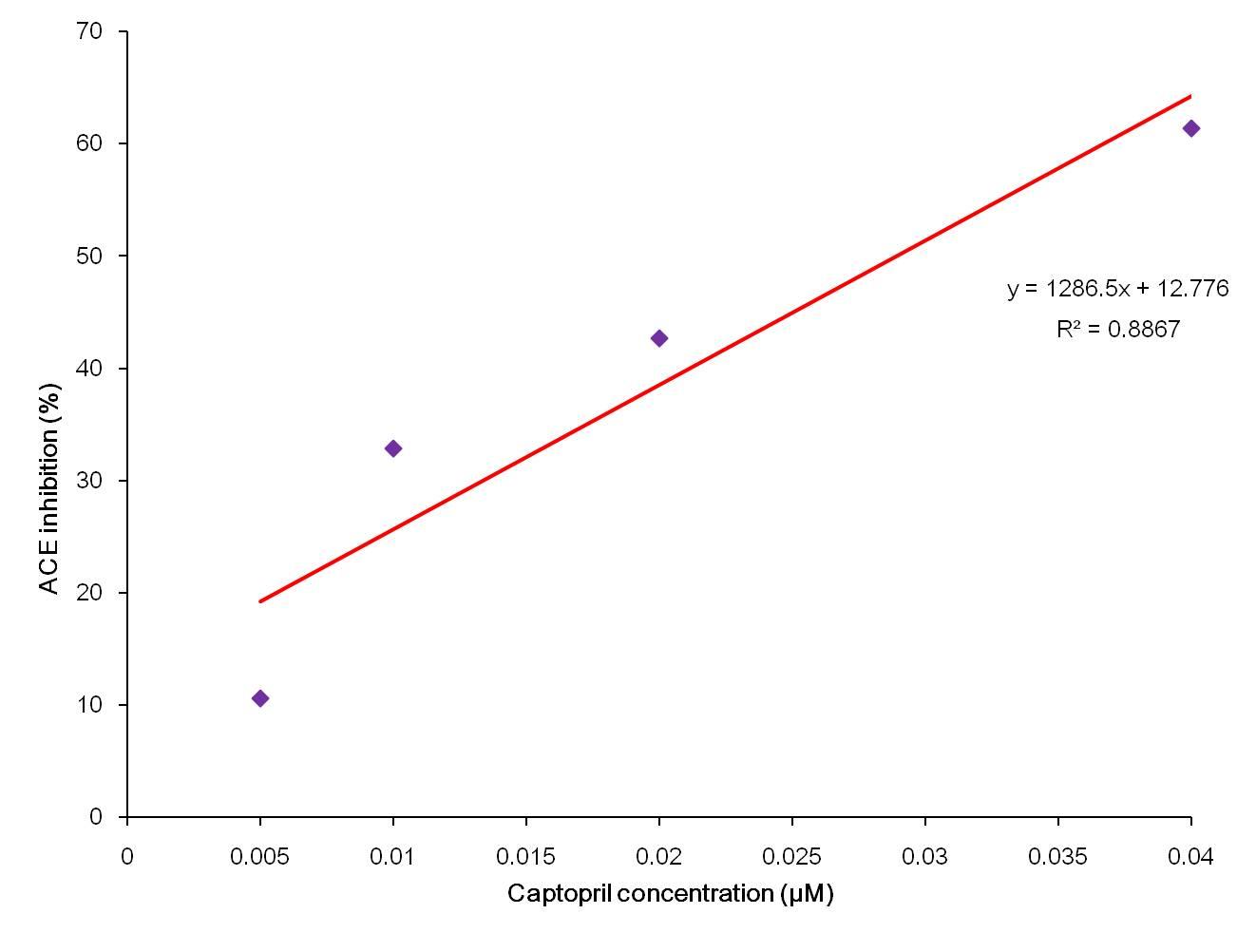

ACE plays a key role in blood pressure regulation [4, 10-12]. ACE converts angiotensin I to angiotensin II which causes the contraction of blood vessels and thereby leads to hypertension. Inhibition of ACE activity by MOLME was measured by ACE inhibition assay with reference compound, CP, which is a potent inhibitor of ACE [13]. Figure 1 and Figure 2 show ACE inhibition activities of MOLME and CP at different concentrations, respectively. The IC₅₀ value for ACE inhibition by MOLME was found at 226.37 µg/ml. IC₅₀ of CP was 0.0289 μM. This result indicated that MOLME has ACE inhibitory activity which might be a candidate for lowering hypertension.

Type of ACE inhibition mechanism

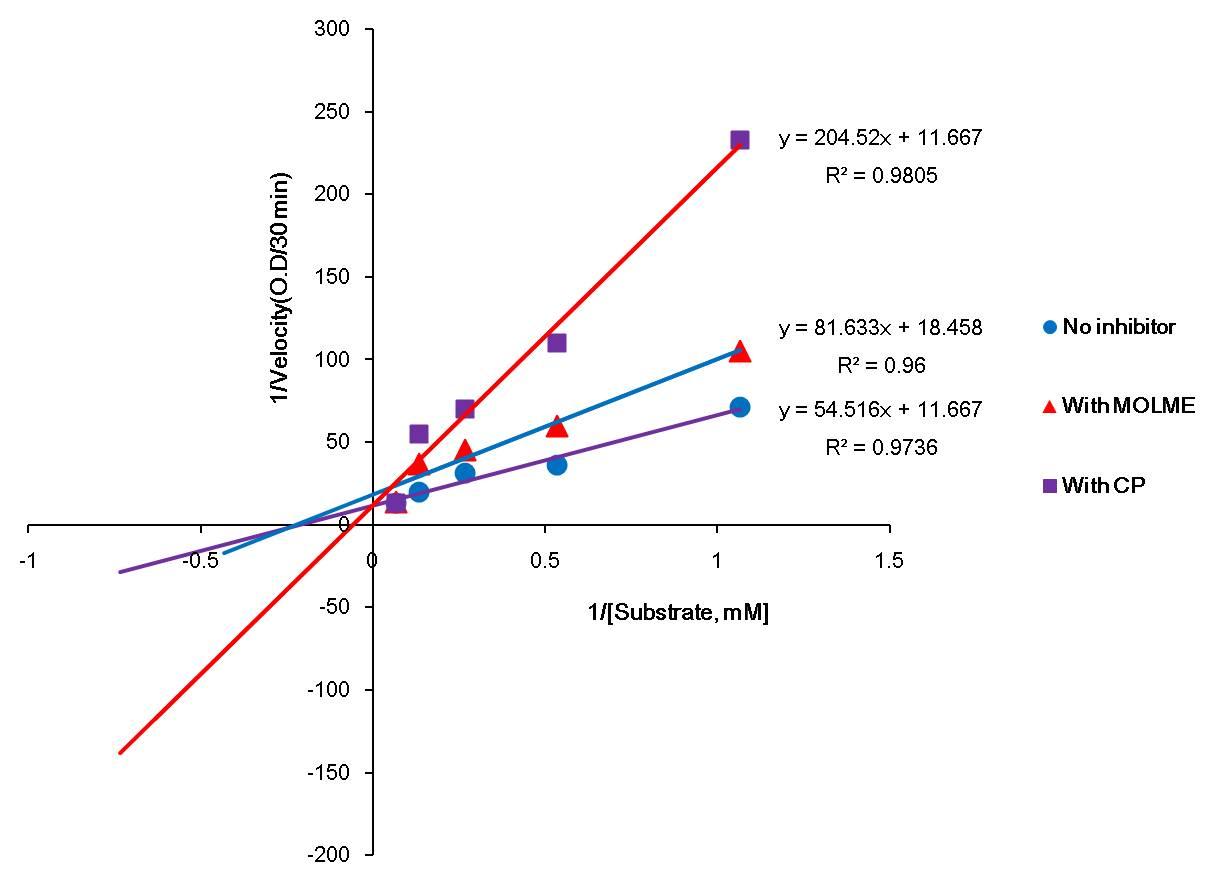

The mode of action of MOLME in ACE inhibition at various HHL substrate concentrations (Figure 3 and Table 1) was also determined. The Km values of the ACE activity were found to be 4.507 and 4.42 for no inhibitor and MOLME respectively and Vmax values were 0.0842 and 0.0463. These results indicate that ACE activity inhibition was by MOLME as a non-competitive inhibitor.

The objective of this study was to evaluate whether MOLME have ACE inhibitory activity. The present study revealed that MOLME has ACE inhibitory activity in vitro with an IC₅₀ of 226.37 µg/ml and CP has shown inhibition IC₅₀ of 0.0289μM, which is a strong competitive inhibitor of ACE [8] as shown in figure 1 and 2. Like CP, several ACE inhibitory agents, such as, eritadenine [8], and snake venom [14] were shown to have competitive inhibitory activity. In the present study, MOLME was found to have non-competitive ACE inhibitory activity as shown in Figure 2 and Table 1 and this is the first report of MOLME as an ACE inhibitor which was compared with CP, a potent competitive ACE inhibitor.
Analysis of kinetic properties gives the mechanism of MOLME to inhibit ACE activity, along with the quantity required either for the reaction to continue or for ACE activity to be inhibited [8, 14-17]. Line Weaver-Burk plot for ACE reactions in various concentration of HHL with MOLME (226.37 μg/ml) or without MOLME revealed that Vmax 0.0541 and 0.0857 respectively. Vmax increased MOLME and Km increased from 4.41 to 4.671 mM HHL, indicating non-competitive inhibitor (Figure 3 and Table 1). There was no previous data MOLME in the literature to compare. Same Vmax and increased (variation) in Km 4.671 and 17.52 were found for no inhibitor and CP which indicate competitive inhibitor. In previous different studies, CP has shown competitive inhibitor of ACE similar to our study (Figure 3 and Table 1).
Therefore, the results indicate that MOLME is a non-competitive inhibitor which may bind different site of the enzyme other than the active site. MOLME may bind either with the free enzyme or enzyme-HHL complex.

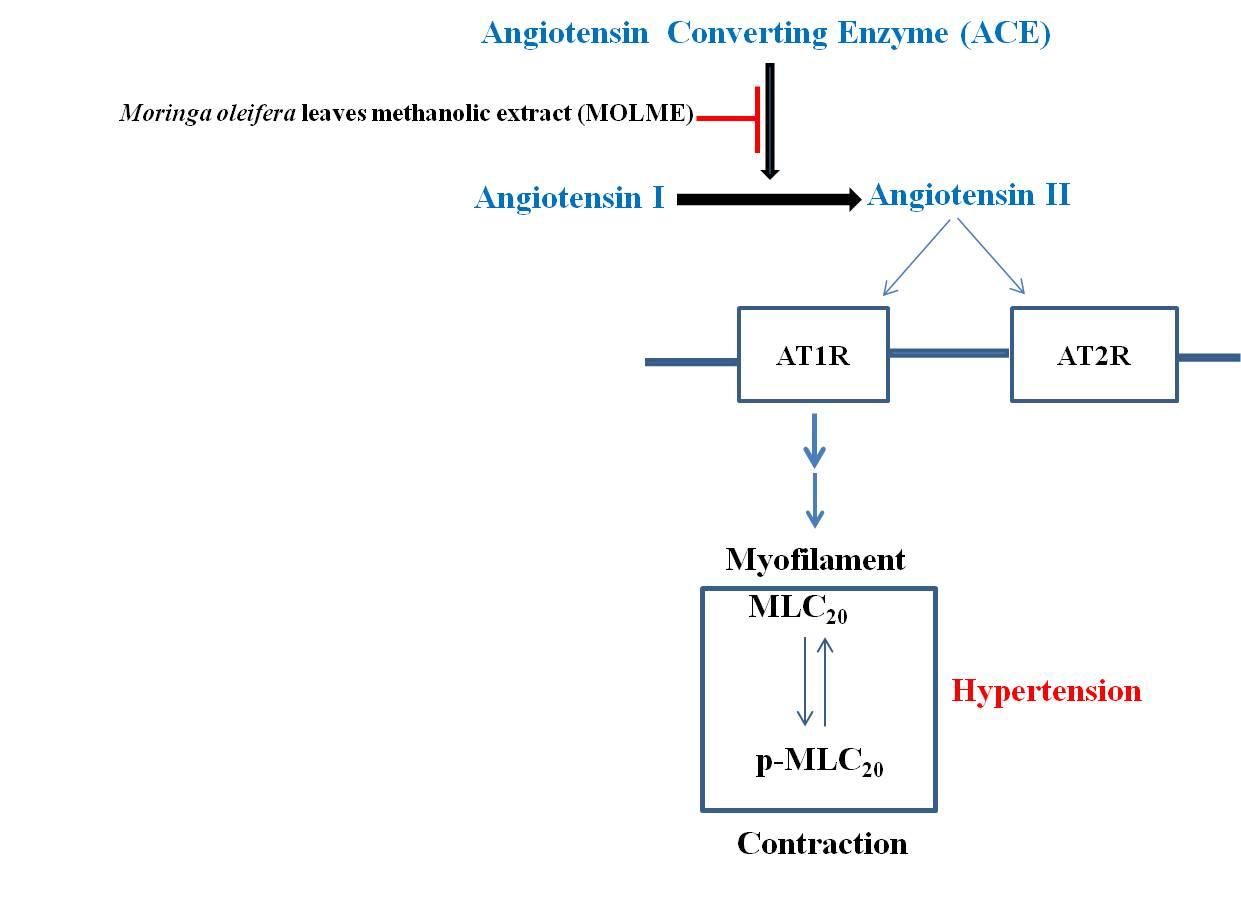

In conclusion, this study, first reported that MOLME have ACE inhibitory activity with an IC₅₀ of 226.37µg/ml. This result suggests that editable moringa oleifera leaves could be useful for the treatment of hypertension (Figure 4). Further research is needed to clarify the antihypertensive action of MOLME in vivo.

This study was supported by a grant from Ministry of Science and Technology, Peoples Republic of Bangladesh under “Special Allocation for Science and Technology” program 2016-2017 (GO NO:39.00.0000.09.02.6916-17/14 MEDI’S, Gr. serial no. 249).

Suraiya Aktar and Plabon Kumar Das were involved in conception and design and perform the experiments. Saharia Yeasmin Asha and Mst. Ayesha Siddika analyzed data. Md. Abdur Rakib contributed to drafting the article. Farhadul Islam and Jahan Ara Khanam contributed to revising it critically for important intellectual content. Md. Abdur Rakib made the final approval of the version to be published.

The authors declare that there is no conflict of interests.
